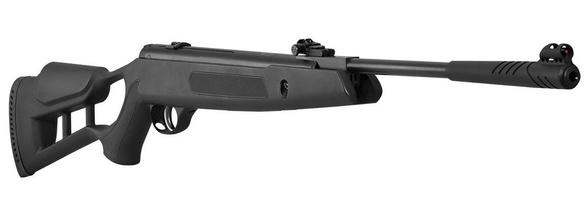

Hatsan EDGE is a lightweight, state-of-the-art piston air rifle with a TH-type polymer buttstock. It was created for all those who are looking for a good and strong carbine with a proven design at an affordable price. Hatsan Striker EDGE air rifle is equipped with a precision threaded steel barrel from Hatsan.
Specifications of the Hatsan EDGE air rifle
Settlement - ergonomic housing with TH thumb hole (thumbhole) made of durable polymer. Fluting on the pistol grip and in the center of the bed provides a secure grip. On the flask there is a contoured cheek pad of the Monte Carlo type that makes it easier to fold up to shoot as well as to aim. The flask of the Hatsan Striker EDGE air rifle has been adapted for both right and left-handed people. The ventilated rubber foot on the end of the flask absorbs the recoil energy after a shot is fired.
Barrel - precision threaded hatsan barrel with a length of 17.7" (450 mm)
Mounting rail - the windcheater has a mounting rail 11 mm allowing the mounting of any optical sight. In addition, the rail has a stopper that absorbs recoil after a shot is fired to prevent the optical sight from moving along the rail and calibrating it.
Hatsan EDGE air rifle - quality and safety
Hatsan Airguns EDGE have been equipped with many unique solutions to improve comfort and safety of use:
- Anti Bear-Trap Safety - protection against premature release of the spring during its tensioning, thus protecting against possible injuries to the hands or fingers.
- TruGlo - fiber-optic targeting instruments with contrasting fiberglass colors allow precise shooting even in low light conditions. The bow tie - red, the pinniped - green has the ability to adjust vertically as well as horizontally.
- Automatic fuse - located in the rear of the cylinder of the Hatsan Striker EDGE air rifle to protect against uncontrolled shots. This placement allows intuitive operation of the fuse with the thumb. Before firing the shot, press the fuse, which will release the trigger lock, (each time you pull the spring of the windcheater, it automatically triggers).
Table of technical parameters:
Model |
Caliber |
Max. exit velocity* |
Flask |
Overall length |
Barrel length |
Weight |
Fiber optic diameter |
|
Ribbon |
Fly |
|||||||
EDGE |
4.5 mm / .177 cal |
305 m/s (1000 fps) |
Polymer thumbhole with profiled cheek tank of the "Monte Carlo" type |
1100 mm (40.3") |
450 mm (17.7") |
3.0 kg (6.6 lbs) |
0.9 mm (.035") green |
1.5 mm (.060") red |
5.5 mm / . 22 inch |
245 m/s (800 fps) |
|||||||
6.35 mm / .25 inch |
200 m/s (650 fps) |
* The above maximum values apply to wind guns with no energy limit.
* The discharge velocity of the shot can vary depending on its weight and shape
With each windcheater, the manufacturer includes Energy Limit Certificate 17 J. This is a document stating the conformity of the product features, and thus the legality of the windcheater with Polish regulations. Wind guns imported to the Polish market have an engraved website address www.sharg.en the exclusive distributor of the company Sharg.
Elaboration: the company Sharg®
Technical data | |
Caliber: | .177 (4.50 mm) |
Rodzaj napędu: | sprężynowy |
Rodzaj naciągu sprężyny: | łamany |
Energia początkowa: | do 17 J |
Rodzaj śrutu: | ołowiany |
Wymiary | |
Lufa | |
Rodzaj lufy: | Hatsan |
Lufa gwintowana: | tak |
Przyrządy celownicze | |
Przyrządy celownicze: | regulowane światłowodowe |
Osada | |
Dane dodatkowe | |
Bezpiecznik: | automatyczny |
Dystrybutor: | Sharg |
ATTENTION: Przeczytaj! | ATTENTION! In different countries, there may be different legal restrictions regarding the possession, use and purchase of various products, such as air guns or air soft guns. If the goods ordered by you are to be delivered abroad or you travel with goods |
